This is Ford's own workshop manual for the chassis underneath your motorhome, 6,567 pages in a single searchable PDF. Ford never sold the F53 as a finished vehicle. It left the factory as a frame with running gear, and the manual's VIN table spells out what the code means: “F53 – Recreational Stripped Chassis (Motorhome)”. A coachbuilder then put a body on it. That division is the single most useful thing to understand about this book, because everything Ford was responsible for is documented here in factory detail, and everything above the frame rails belongs to whoever built your coach.

Which vehicles this manual fits

• Fits: Ford F53 motorhome chassis, whatever badge is on the coach. Ford supplied it as an incomplete vehicle to the body builder, so this manual covers the Ford half: frame, engine, transmission, axles, brakes, steering and the chassis electrics
• Covers years: 2004, 2003, 2002, 2001, 2000

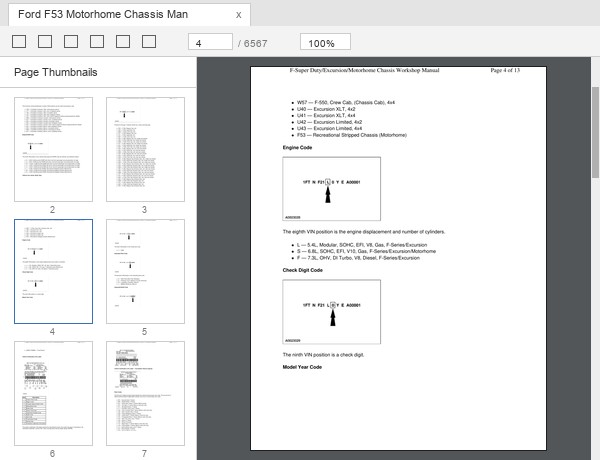

• Engine: the 6.8L Triton V10. The manual's VIN engine codes make this explicit, and only one of the three codes names the motorhome: “S – 6.8L, SOHC, EFI, V10, Gas, F-Series/Excursion/Motorhome”. Its firing order is 1-6-5-10-2-7-3-8-4-9

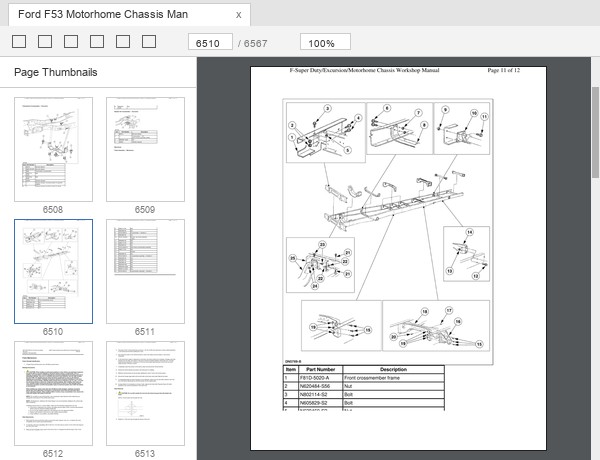

• Its own frame section: section 502-02 carries three separate frame assemblies, one for the F-Super Duty, one for the Excursion and one headed “Frame Assembly – Motorhome”, illustrated with twenty-five numbered callouts and part numbers down to F81D-5020-A for the front crossmember

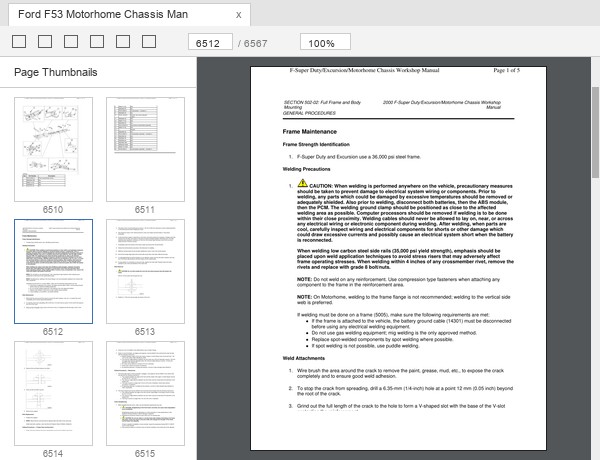

• Frame modification rules: there is a Welding Precautions section written for this chassis, stating that welding to the frame flange is not recommended and directing you to the vertical side instead, plus instructions for drilling holes in the horizontal frame flanges
• Gearbox: 4R100 automatic, with its cooling circuit and external controls covered in separate sections
• Axles and brakes: Dana 80, Dana S135 and the Ford 10.50-inch ring gear, full floating wheel hubs in both Dana and Ford forms, and anti-lock braking documented separately for rear-wheel and four-wheel systems
• Language: English
• Pages: 6,567 in a single PDF
• Also included free: Ford's official 20 page specification sheet for the 2019 F53 chassis, with gross vehicle weight ratings from 16,000 to 22,000 lb, five wheelbases, axle, brake, spring and tyre data. It is bonus reference material for the platform and the figures in it describe a 2019 chassis, so do not apply them to a 2000-2004 one. The download explains this, and your own ratings are on the chassis data plate
• File type: ZIP containing the workshop manual PDF, the bonus specification PDF and a read me

Inside this manual

Every entry below is a section present in the document, and the numbers are Ford's own:

Sample pages from this manual

These are real pages taken from the document:

What you can repair with it

Start with the frame, because on a motorhome that is where the awkward jobs live. Section 502-02 gives the F53 its own frame assembly drawing, separate from the truck and the Excursion, with the crossmembers, gussets and stub assemblies numbered and listed by part number. Alongside it sits a Welding Precautions section written for this chassis, which tells you not to weld to the frame flange and to use the vertical side instead, and a procedure for drilling the horizontal flanges properly. If you are fitting a new appliance bay, repairing a sagging extension or chasing corrosion in the rails, those pages are worth the price on their own.

The V10 gets a full engine section with specifications, in-vehicle repair, removal and installation, disassembly and assembly, and its exploded views name every component with a Ford part number underneath. Fuel charging and controls, ignition, emission control, the accessory drive, intake air and evaporative emissions all have their own sections, and electronic engine controls are separated so you read the gasoline material and not the diesel.

Behind the engine, the 4R100 automatic is documented along with separate sections for its cooling circuit and its external controls. Underneath, the rear axles are organised by type, so the Dana 80, the Dana S135 and the Ford 10.50-inch ring gear each have their own coverage, and full floating wheel hubs are documented in both Dana and Ford forms. Anti-lock braking is split between rear-wheel and four-wheel systems, and the steering, power steering, column and column switches each get sections of their own.

What is not here is anything the coachbuilder fitted. Ford handed over an incomplete vehicle, so the habitation body, the windows in it, the roof, the appliances, the leisure batteries and the interior are all outside this manual's scope, and you would need documentation from whoever built the coach for those. This book is the Ford half, in Ford's own detail.

Manual language and format

Written in English and delivered as one 6,567 page PDF. The text layer is live, so searching a section number, a part number or a torque figure takes you straight to the page, and single pages print without fuss when you want one at the vehicle. It opens in any standard PDF reader on Windows, Mac, tablet or phone.

Questions about this manual

What does F53 actually mean?
It is Ford's chassis code, and the manual's own VIN table defines it as “Recreational Stripped Chassis (Motorhome)”. Ford built the frame, drivetrain and running gear, shipped it as an incomplete vehicle, and a coachbuilder mounted the living quarters on top. So your motorhome has two makers: the Ford underneath, which this manual documents, and the coach above it, which it does not.

What engine is in a Ford F53 chassis?
The 6.8L Triton V10. The manual settles it in the VIN engine codes, where only one of the three names the motorhome: “S – 6.8L, SOHC, EFI, V10, Gas, F-Series/Excursion/Motorhome”. Its firing order is 1-6-5-10-2-7-3-8-4-9. The 5.4L V8 and the 7.3L diesel listed in the same table were F-Series and Excursion engines, not motorhome ones, though both sections are in the book anyway.

Can I weld or drill the F53 frame?
Carefully, and the manual is specific about it. There is a Welding Precautions section for this chassis which states that welding to the frame flange is not recommended and points you to the vertical side of the rail instead, and there is a separate procedure covering where and how holes may be drilled in the horizontal frame flanges. Anyone mounting equipment to the rails should read those pages before cutting anything.

Will this cover the living area of my motorhome?
No, and no Ford manual will. Ford's responsibility ended at the chassis, so the coach body, its windows and roof, the appliances, the plumbing and the interior fittings were all installed by the company that built it, and their documentation is where those answers live. What you get here is complete factory coverage of the part that drives, steers and stops.

Does it apply to my 2003 motorhome?
Yes. Ford dated this book to 2000 and the F53 package ran on through 2004 with the same V10, the same 4R100 automatic and the same frame family, so the sections apply across that span. Bear in mind the model year on your paperwork may be the coachbuilder's rather than the chassis year, and the two are often a year apart, so check the Ford VIN on the chassis if you want to be certain.

How you receive it

Secure checkout, and the download link arrives immediately after payment. Nothing is posted and nothing needs waiting for. The file is yours, and it can be downloaded again while the link remains live.
